Carcommunication and scripts

in the CARCOM database (T102), the modules are defined by a number: example the CEM = 372302

scripttype statusindentifier

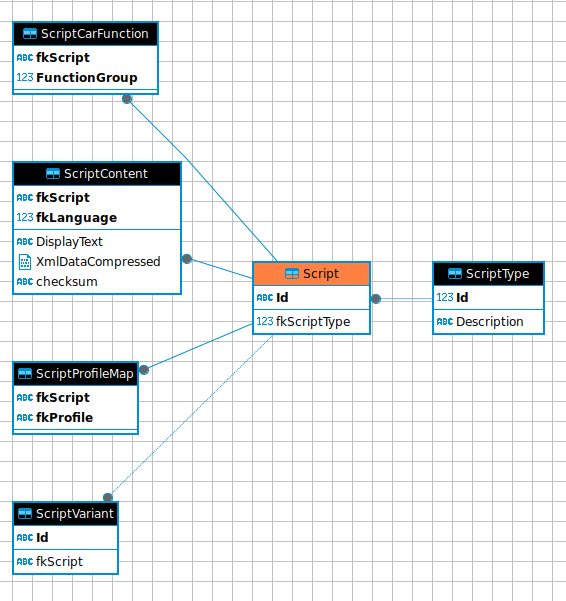

in the DIAGSWDL database (ScriptCarFunction), Functiongroup (372302 exactly the same number refers to numerous script numbers)

Example : 0900c8af81b6a712 which is SUN_SENSOR,_VOLTAGE,_STATUS

in the XML file :

property class="Parameter" id="nev9960842n1-nev9960863n1"
identifier ecu="372304" ecuMode="EcuType" id="nev9960842n1-nev9960865n1" read="4" type="REID" value="5E01"
../_images/ScriptCarFunction.png

ScriptType

Checking for our purpose VehCommSpecification:

VehCommSpecification EcuIdentification CarStatus CarConfig ClearDtc ReadVin StatusIdentifier ReadDtc ReadDtcEcm Dro TransportMode CustomerParameter PreProg EcuReplace PreCompleteReadout AlarmMode KeyPos DownloadMode EcuIdentificationHighSpeed EcuIdentificationLowSpeed ClockValue PostReset PreSwdl
