Volvo V50 modules overview

This is an overview of the modules in a volvo V50.

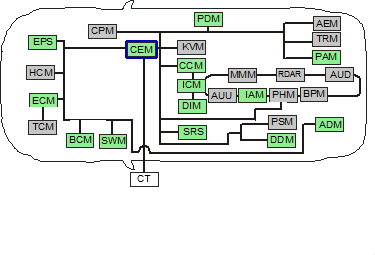

in the vida software you can find an overview that looks like this :

../_images/modules-overview.png

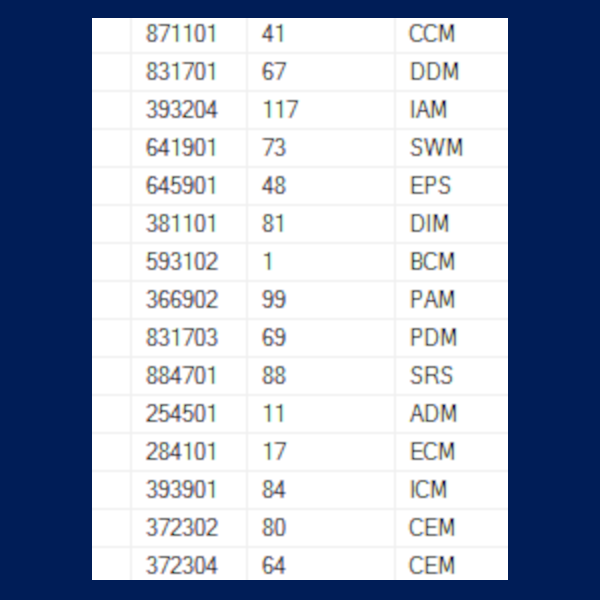

in the log of the diagnostic session I found a link between:

  • the vida xml module ID

  • the can message ID ? (to be confirmed)

  • the module description

../_images/module-id.png

Modules:

  • CEM Central Electronic Module (Behind right side of dash)

  • EPS Electrical Power Steering module (Right front corner of engine compt)

  • BCM Brake Control Module (At left rear corner of engine compt)

  • HCM Headlamp Control Module (Behind left headlight) (Active lights only, (S40/V50))

  • SWM Steering Wheel Module (Top of steering column)

  • ECM Engine Control Module (Left front of engine compt)

  • TCM Transmission Control Module (Rear of engine compt) (Automatic transmission only)

  • ADM Additive Dosing Module (Diesel only)
